Flight Dental Systems

A6 Operatory Package | Dental Chair Standard

A6 Operatory Package | Dental Chair Standard

$13,730.40 CAD
$15,256.00 CAD $13,730.40 CAD
Sale Sold out



OVERVIEW

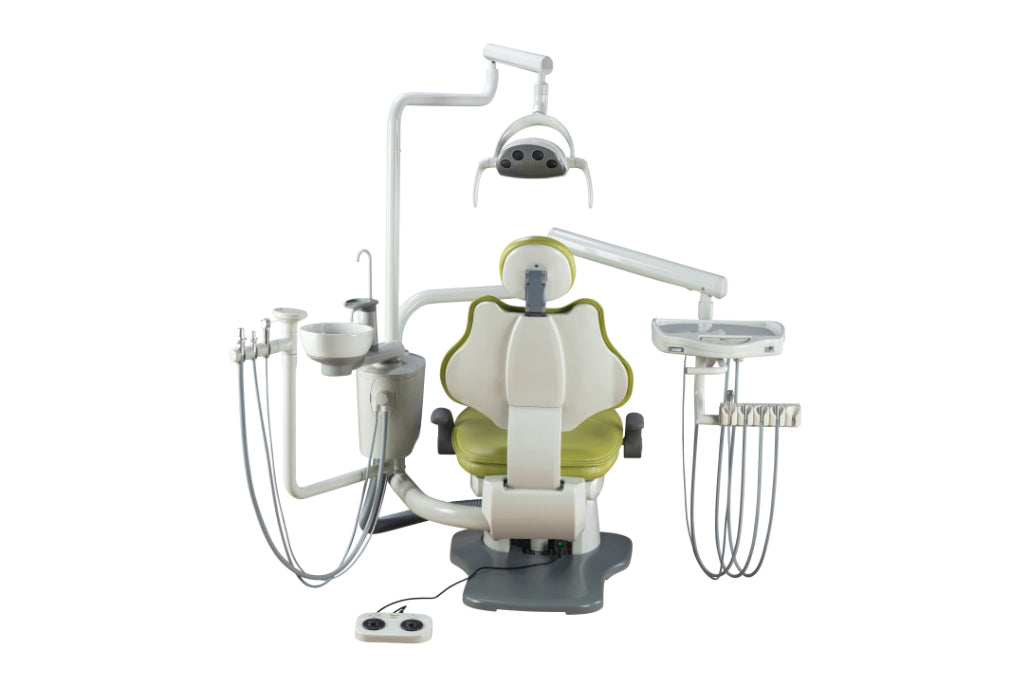

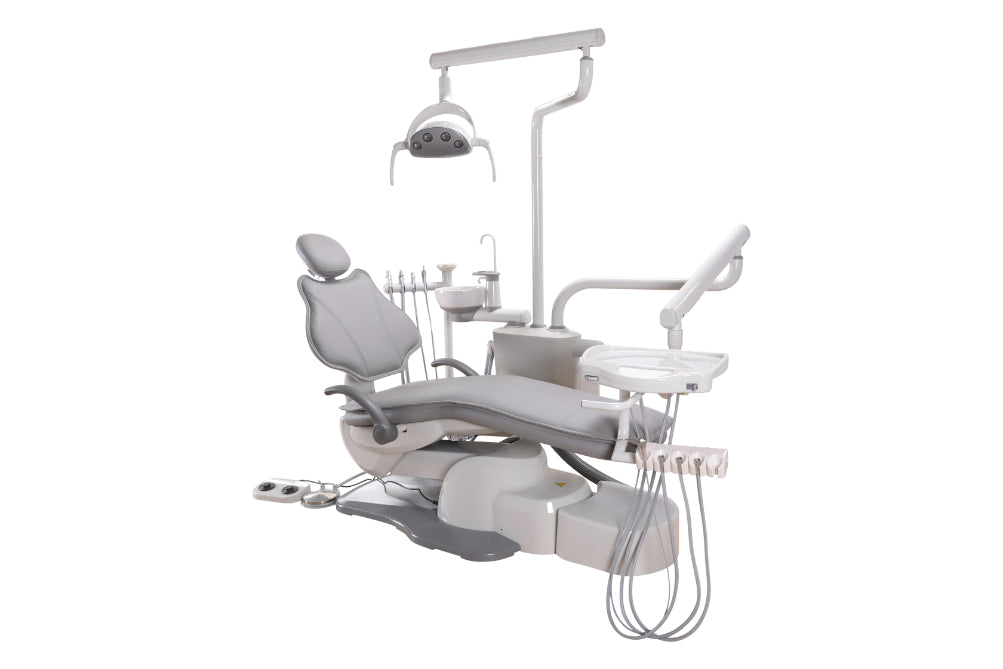

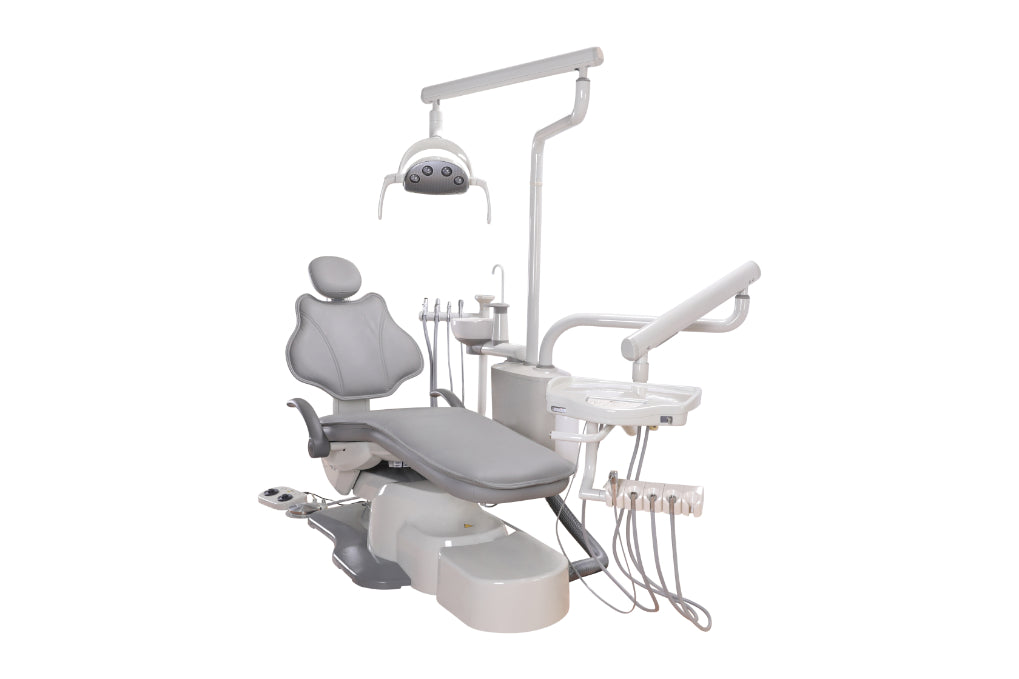

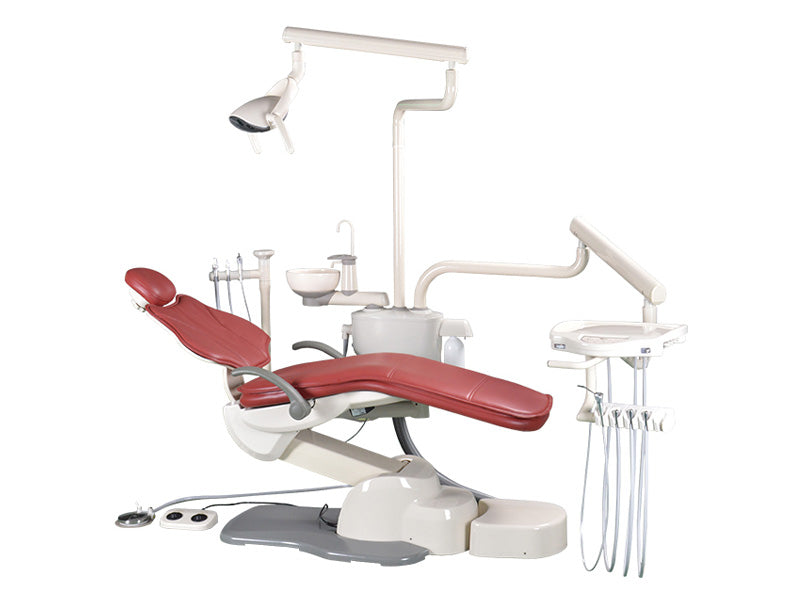

The A6 Operatory System is a sleek, space-efficient, and ergonomically designed dental unit. It features a hybrid lift mechanism that combines a durable hydraulic base with a quiet electromechanical back motor, enabling smooth, synchronized chair movements for quicker patient positioning. Its slim backrest and contoured base plate provide excellent maneuverability and unobstructed access to the oral cavity.

Standard features include a one-piece rotating cuspidor, Torch LED light, chair controls for both doctor and assistant sides, and a clean water bottle system. The ergonomic chair design supports efficient workflow from the 9, 10, 11, or 12 o’clock positions without interference. The unit is available in both North American and Continental style delivery systems







SPECIFICATIONS

Conifigurations:

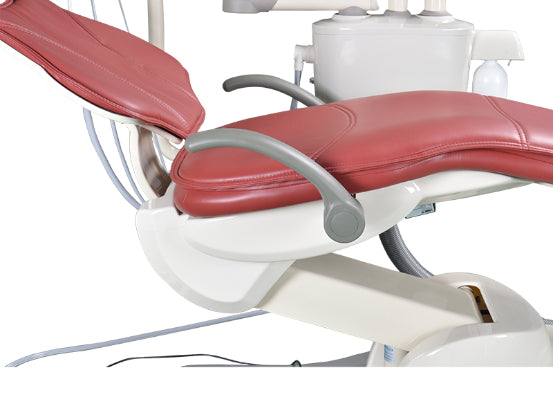

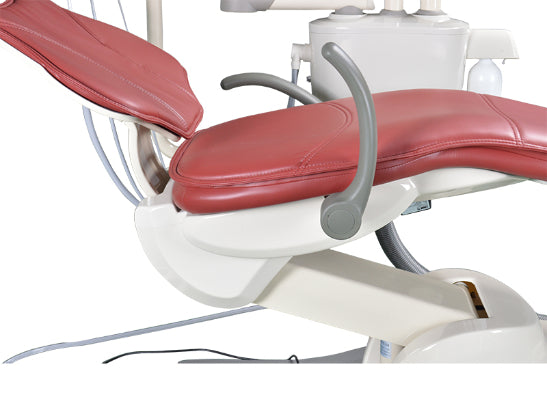

A6 Patient Chair (Standard Features)

  • Hydraulic Base and Electromechanical Back Rest

  • Seat Height 13.7” to 29.5” (350 to 750mm)

  • Backrest Reclining Angle -5° to 64°

  • Electronic Deluxe Foot Control: 2 Programmable positions, Auto-Return and Last Position

  • Safety Shut-Off Plate

  • Input Voltage (110v or 220v)

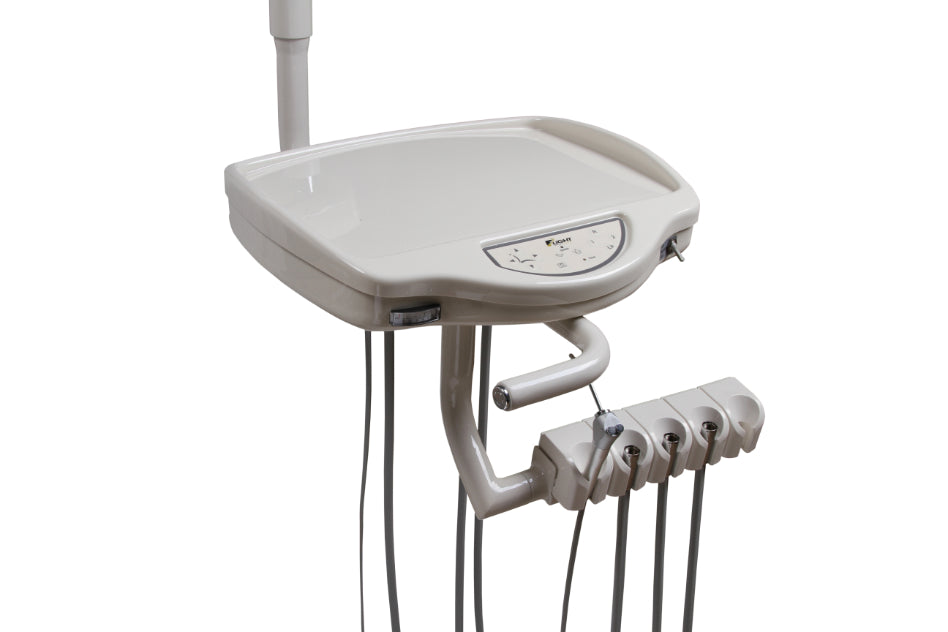

Delivery System

  • Straight Aseptic Tubing for Three Handpieces

  • Convenient Brake Release for Flex Arm

  • Master on-off Control

  • Individual Non-retracting Water Coolant Adjustment

  • Stainless Steel Tray

  • Purge System for Handpiece Tubing

  • Includes 3 in 1 Syringe


Post Mounted Utility Features

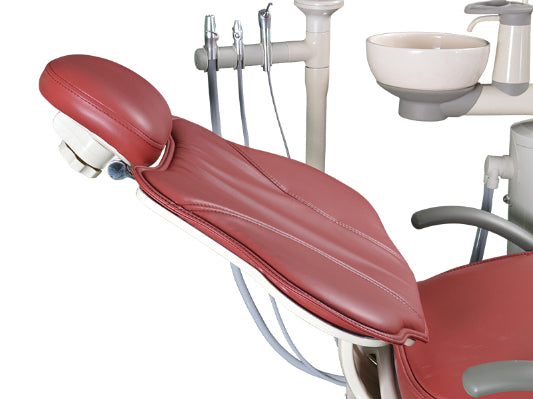

  • One-piece Cuspidor with Removable Ceramic Bowl

  • Automatic Bowl Rinse and Timed Cup Fill

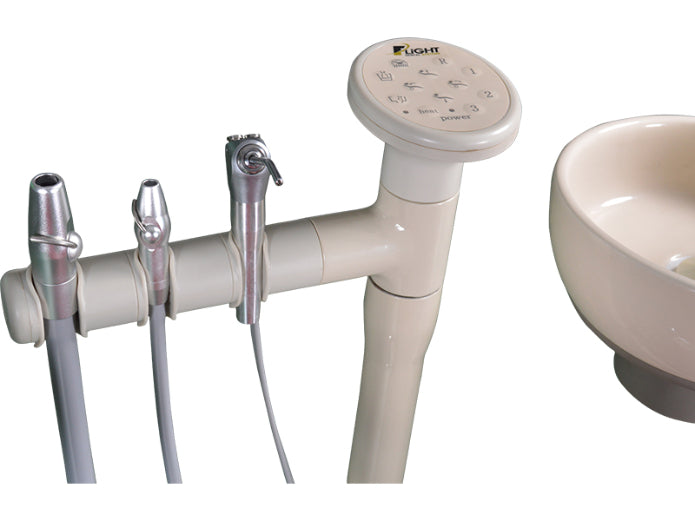

  • Assistant’s Instrumentation (HVE, SE, 3in1 Syringe)

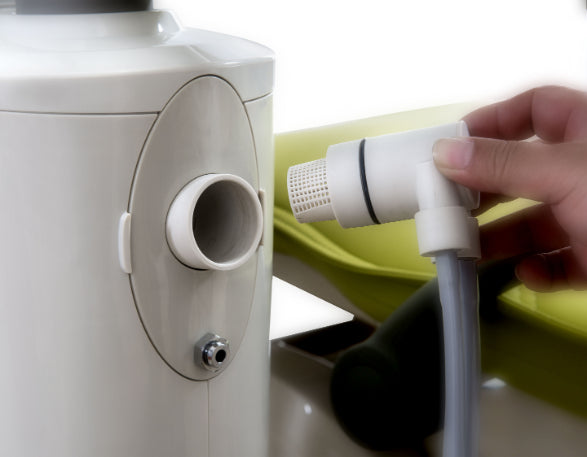

  • Vacuum canister with Solids Collector Screen

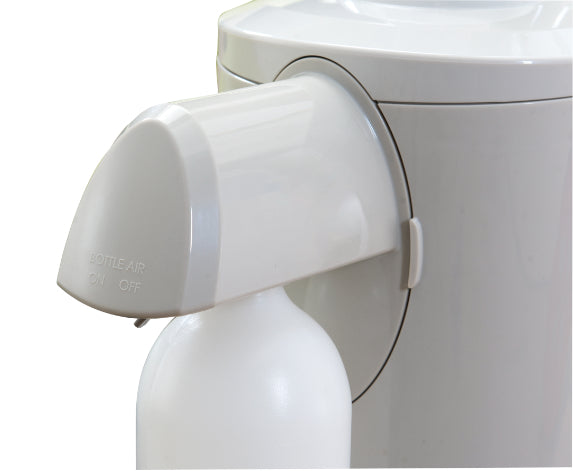

  • Self Contained water bottle system with City/Water Bottle Selector

  • Quick Disconnect water connection


Natural Working Condition:

  • Environment temperature: 5°C to 40°C

  • Related humidity: = 80%

  • Power supply : ~110-220V ± 10%; 50Hz ± 10%, total power of unit: 360VA

  • Air Pressure: 400-600kPa: 30-60psi

  • Water Pressure: 200-400kPa: 60-120 psi

  • Bearing capacity of the chair = 400lbs



Packing Dimensions

55.1” (1.4m) x 44.1” (1.12m) x 49” (1.25m)


Gross Weight

770lbs (350kg)


Net Weight

660lbs (300kg)
